1. Frequency Range: 136-174MHz/400-480MHz 16 channels.
2. Waterproof function(IP67)
3. Monitor
4. VOX
5. Scanfunction
6. Time-out-Time(TOT) function
7. CTCSS/DCS function
8. Squelch level
9. Warn function
10. Wireless copy
11. Power saving automatically
12. Beep function
2. Waterproof function(IP67)
3. Monitor
4. VOX
5. Scanfunction
6. Time-out-Time(TOT) function
7. CTCSS/DCS function
8. Squelch level
9. Warn function
10. Wireless copy
11. Power saving automatically
12. Beep function
|

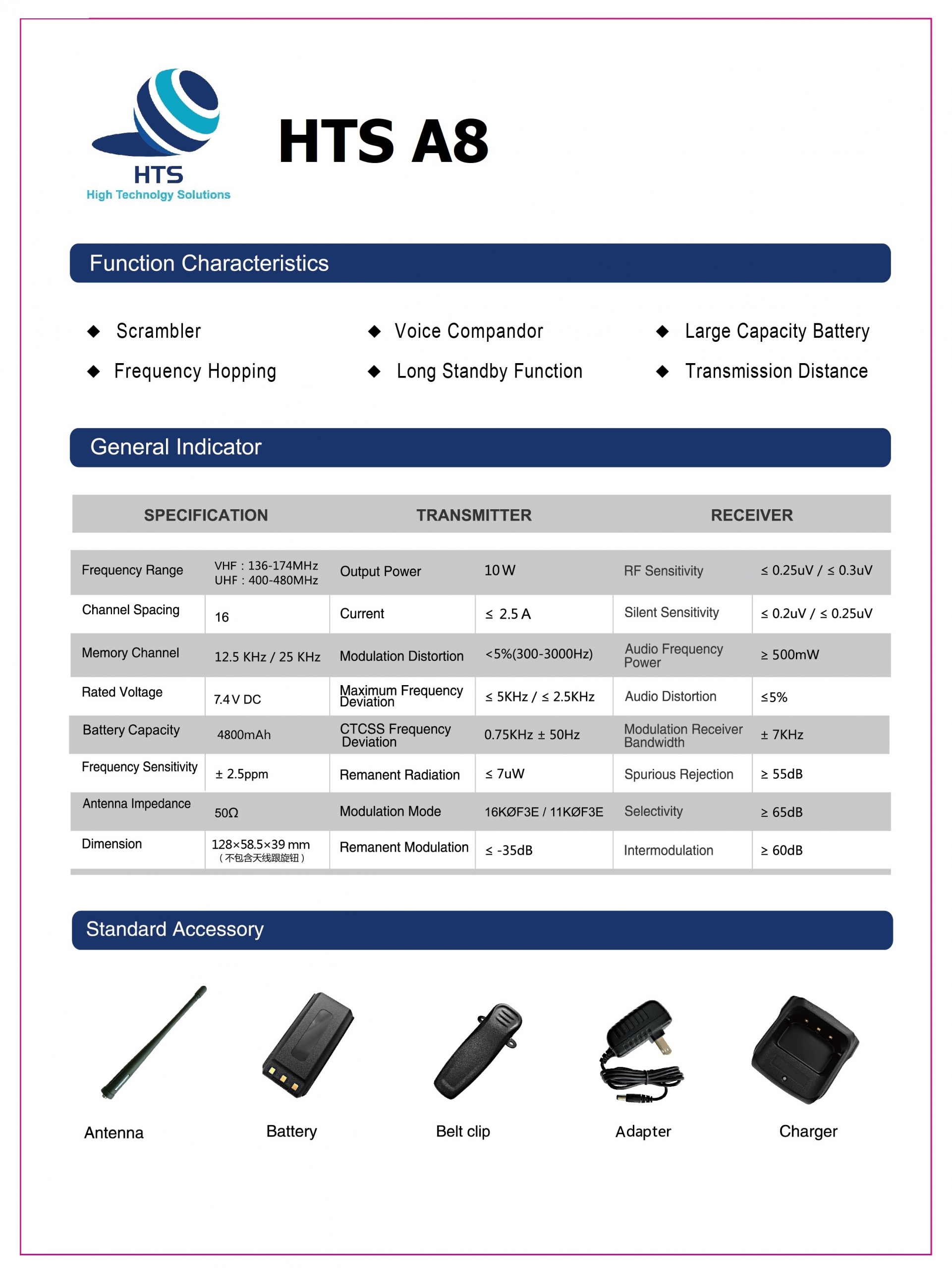

Specifications:
|
|
|
Frequency Range
|
136-174MHz/400-480MHz
|
|
Memory Channel
|
16
|
|
Power
|
10W/1W
|
|
Battery
|
Li-ion 4800mAh
|
|
Frequency Stability
|
±2.5ppm
|
|
Audio Distortion
|
＜5%
|
|
Maximum Frequency Deviation
|
≤5KHz/≤2.5KHz
|
|
Spurious Emission
|
≤7uW
|
|
Modulation Mode
|
16KΦF3E/ 11 KΦF3E
|
|
Reference Sensibility
|
≤0.25uV/≤0.3uV
|
|
Squelch On Sensibility
|
≤0.2uV/≤0.25uV
|
|
Inter-Modulation
|
≥60dB
|
|
Adjacent Channel Selectivity
|
≥65dB
|
|
Spurious Response Rejection
|
≥55dB
|
|
Current
|
≤1.5A
|
|
Working Voltage
|
7.4V DC
|
|
Operating Temperature
|
-20C-+60C
|
Box Included:
1* Radio
1* Antenna
1* Li-ion Battery
1* Charger
1* Belt Clip
1* Hand Strap
1* User Manual
1* Radio
1* Antenna
1* Li-ion Battery
1* Charger
1* Belt Clip
1* Hand Strap
1* User Manual
